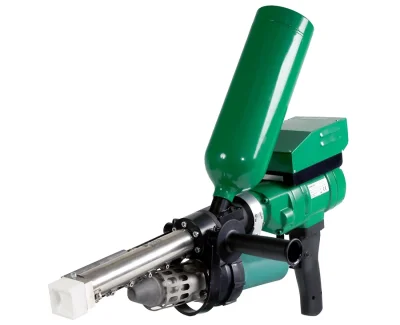

ExOn 6 | Hand welding extruder

BAK ExOn 6 The High-Performance Extrusion Welder Engineered for Industrial Excellence
Looking for the perfect extrusion welder for demanding plastic fabrication work?
The BAK ExOn 6 is the ideal solution.

Produced by BAK Technology Switzerland, a global leader in industrial plastic welding with over 30 years of experience, the ExOn 6 is engineered and manufactured under the strict DVS (German Welding Standard) to ensure world-class performance, durability, and consistent welding quality.

Key Innovations & Patented Technologies
Triple Bearing System
A three-stage bearing configuration designed to increase screw durability and significantly extend motor lifespan.

Thrust Bearing absorbs axial forces from the screw, ensuring smooth, stable rotation and reduced resistance
Ball Bearing minimizes friction between the screw and the shaft
Standard Motor Bearing experiences far less load thanks to the first two bearings, resulting in dramatically longer motor life
Result: Reduced bearing wear, smoother machine operation, and substantially extended extruder lifespan.

Extrudate Temperature Measurement
A temperature sensor embedded inside the screw measures the actual melt temperature, providing maximum accuracy and tighter process control during welding.

Pressure Equalization Zone
A specially engineered stabilization zone that equalizes melt pressure before exiting the nozzle reducing air bubbles and ensuring uniform material flow.

Special Brass Nozzle
A high-quality brass nozzle designed to prevent residue buildup between the Teflon shoe and brass head.
This keeps weld seams clean and extends the nozzles service life.

Hardened Steel Worm & Housing
Manufactured from hardened high-grade steel, offering exceptional resistance to torque and high temperatures ideal for continuous industrial operation.

Infinitely Variable Speed Control
A fully independent speed controller allows precise, stable, continuously variable control, ensuring consistent material feed and extending the motors service life.

Folding Stand
Integrated foldable stand provides stable positioning during use and convenient storage.

Cold Protection System
Prevents screw rotation until the melt temperature is reached, protecting both the screw and the nozzle from premature wear.

Special Plastic Insulation
A specially engineered insulation layer between the screw assembly and the motor reduces heat transfer and prevents welding rods from deforming due to accumulated heat.

**Experience exceptional performance, precision, and durability with the BAK ExOn 6
the extrusion welder engineered for true industrial-grade welding applications.**
