ExOn 1 | Hand welding extruder

Looking for the perfect extrusion welder?
The BAK ExOn 1 is exactly what you need!

The ExOn 1 Extrusion Welder from BAK Technology Switzerland is engineered for industrial-grade plastic welding. With over 30 years of expertise, BAK is a global leader in professional plastic welding systems.
All extruders are manufactured under European DVS (German Welding Standard) to ensure world-class performance and reliability.

Durability
Manufactured in Switzerland under BAKs strict quality standards
Designed for significantly longer service life than typical extruders
Equipped with the latest Flicker Regulation Technology and a wear-reduced Rod Feed System
Main screw and barrel are made from tempered steel for maximum strength and long-term durability

Precision
Features BAKs patented temperature-measuring system
Thermocouple positioned directly at the outlet inside the melt barrel for true temperature accuracy
Two Heating System independent heating control for hot air and molten plastic
Displays both set temperature and actual temperature simultaneously
Delivers highly accurate, stable, and consistent welding results

Flexibility
Lightweight and easy to handle for long working hours
Equipped with a 360° revolving welding head with an integrated preheat nozzle
Rotatable handle for improved maneuverability in confined spaces
Designed to work smoothly in any welding direction

Performance
Cold Start Protection controls both air and material temperature to prevent premature screw rotation
Ensures safe startup under all conditions and maximizes welding efficiency
Integrated thermal protection prevents motor overload and reduces maintenance
Extends the overall service life of the machine

Material & Capability
Compatible with PP, PE, PVC, and PVDF
Consumes Ø 4 mm welding rods
Output capacity up to 1.2 kg/h

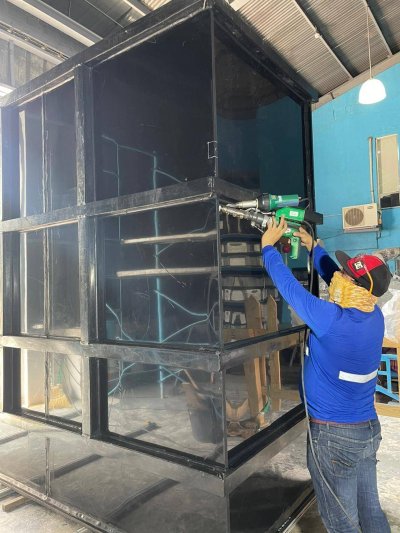

Ideal for welding 5-12 mm thick sheets, HDPE geomembranes,

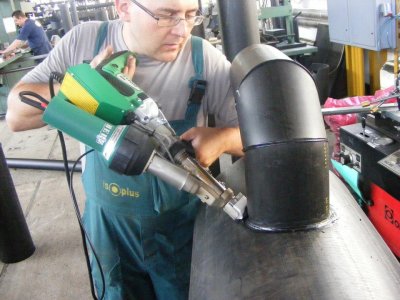

water tanks, chemical tanks, pipes, plastic components,
and field applications requiring extreme durability

Key Highlights
Robust Swiss-made construction with long service life
Cold Protection System prevents screw rotation before melt temperature is reached

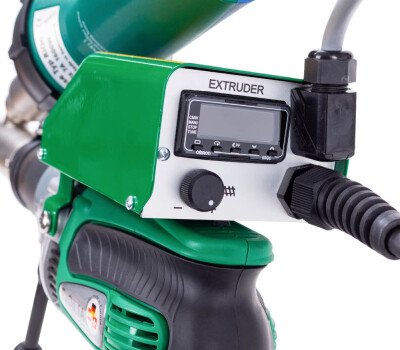

Digital Read-Out showing real-time actual temperature
360° rotatable welding shoe with two nozzle options included
Built-in foldable stand for easy placement
Lightweight, controllable, and optimized for field welding

Experience unmatched performance, precision, and durability with the BAK ExOn 1
The extrusion welder engineered for true industrial-grade applications.
